RFECU Performance APP 2.0 with great functionality, able to replace conventional diagnostic tool, and also be able to log over 60 engine parameters simultaneously for analysis in later. Don’t need to take the risk riding on the road for testing and pay attention to look into the gauge, just focus on riding!
Here introduce you the functions and user instructions of RFECU Performance APP 2.0

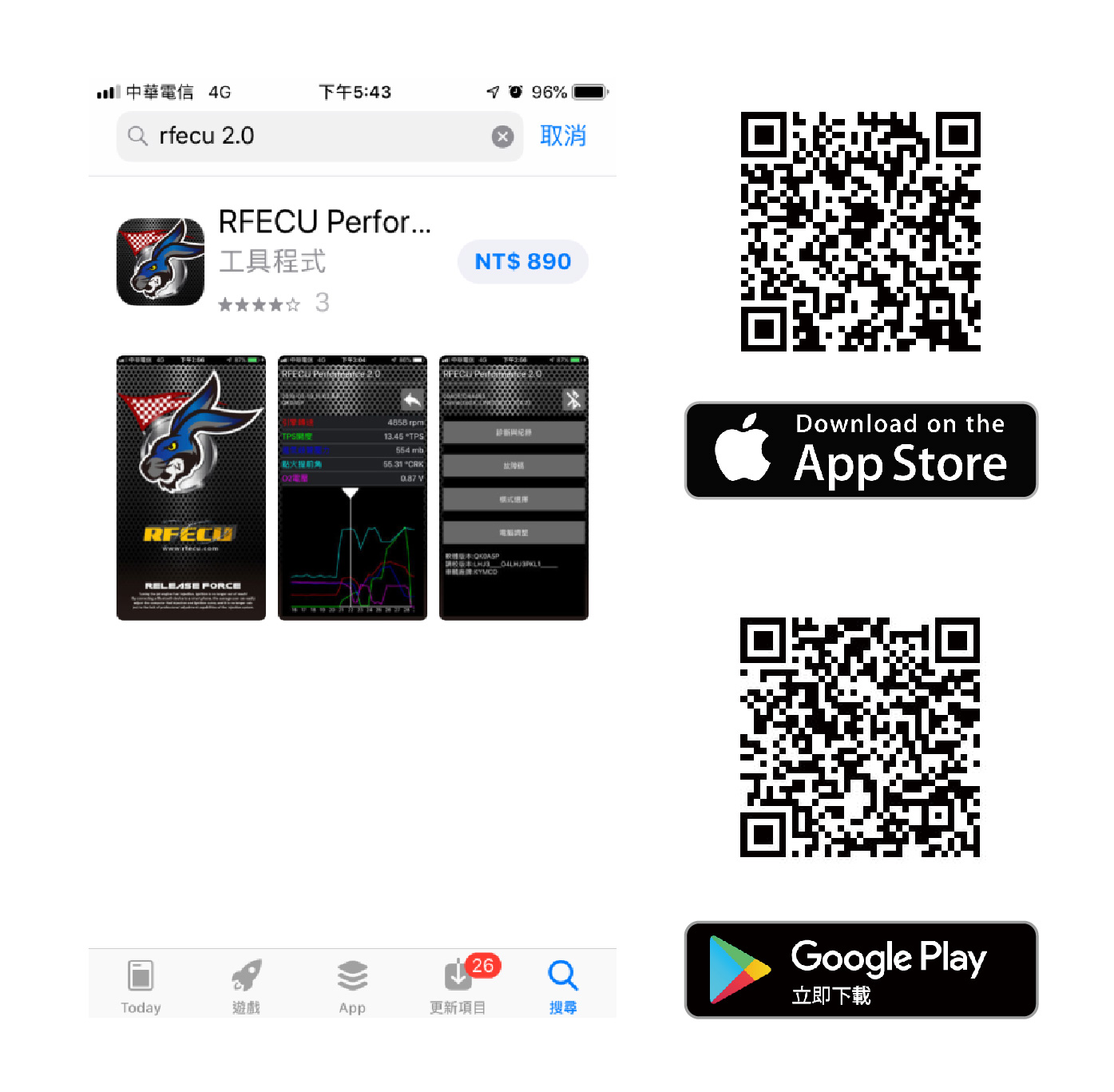

For download the APP, please go to the Google Play(Android) or APP store(iOS), please search “RFECU”

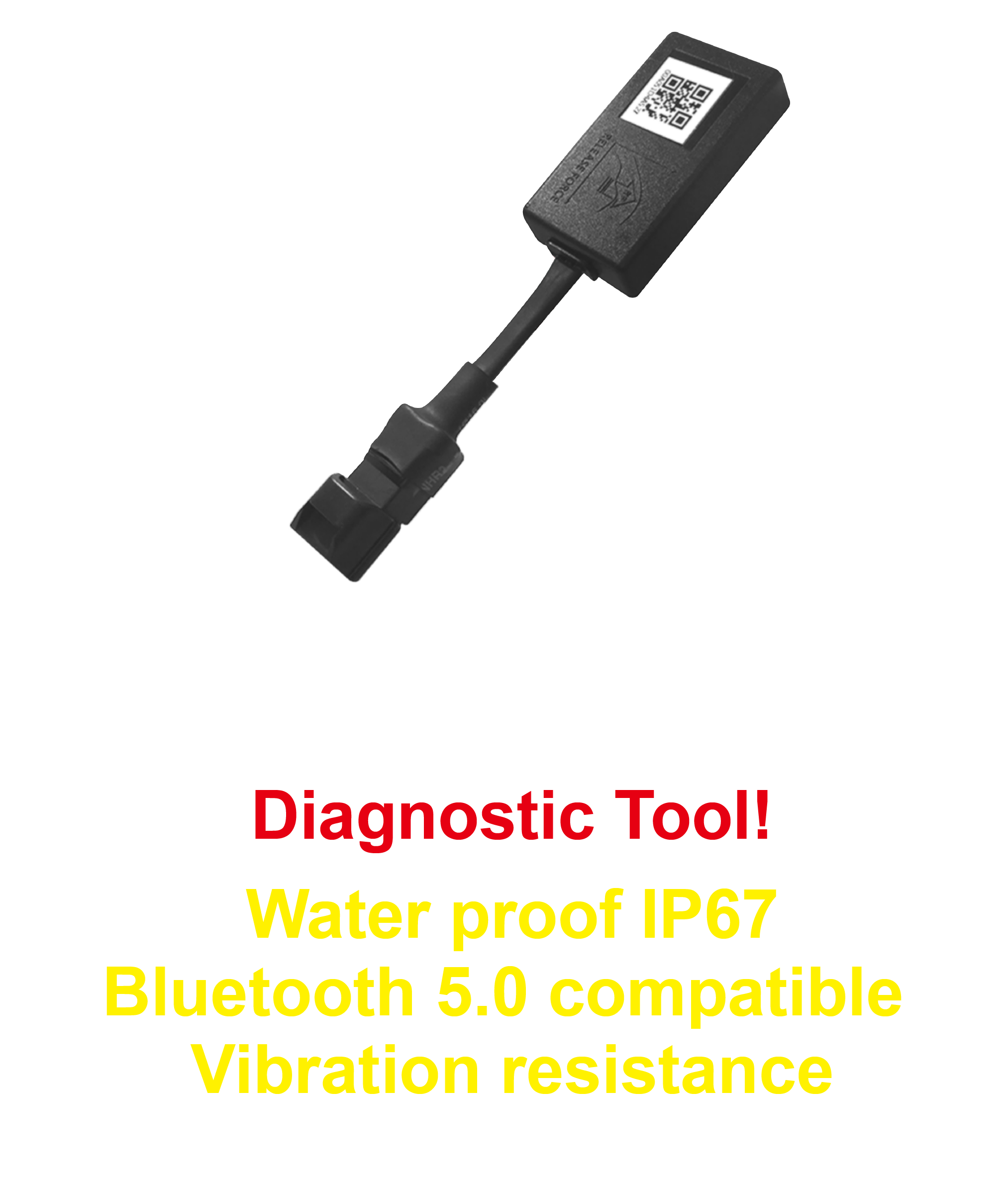

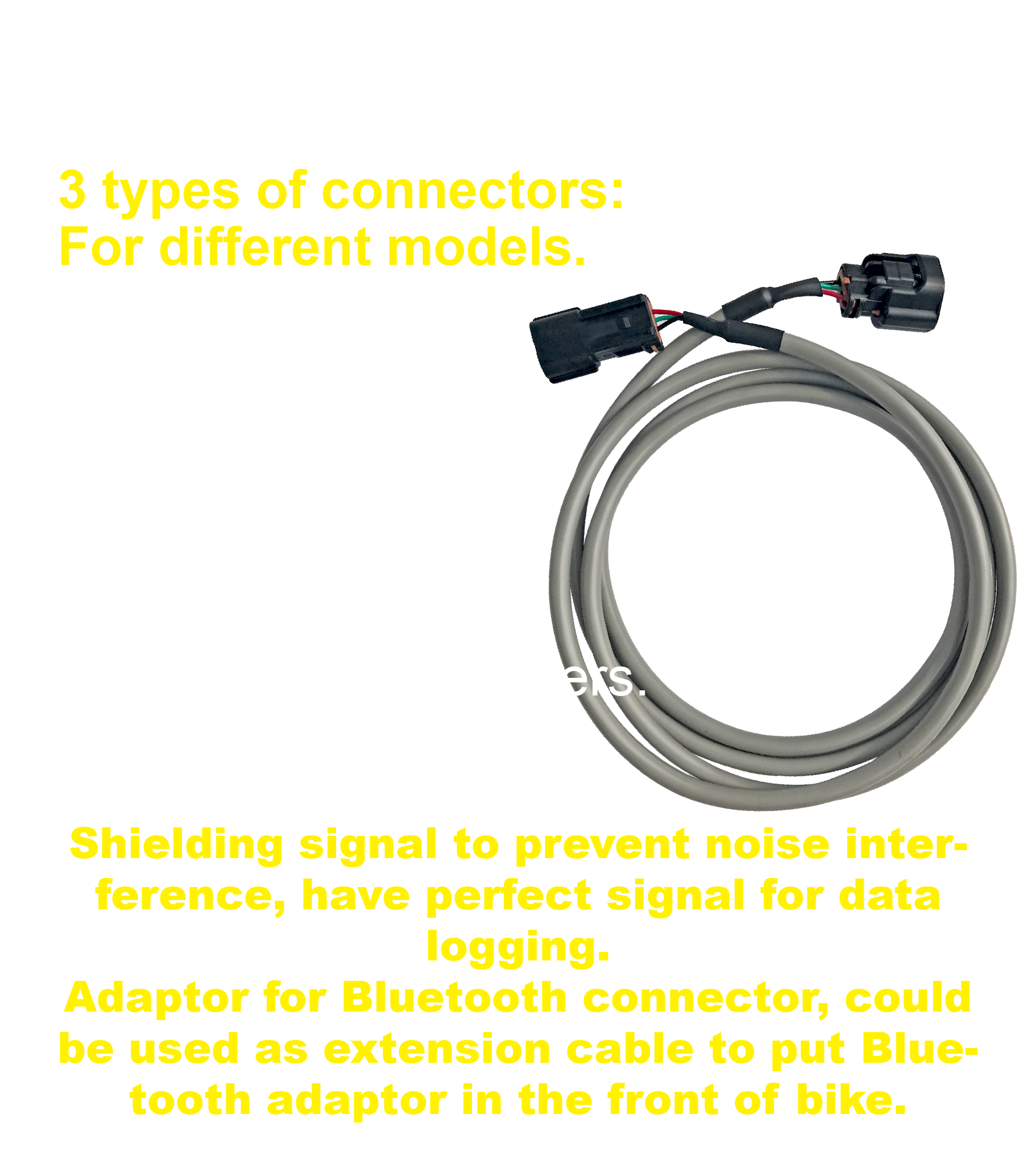

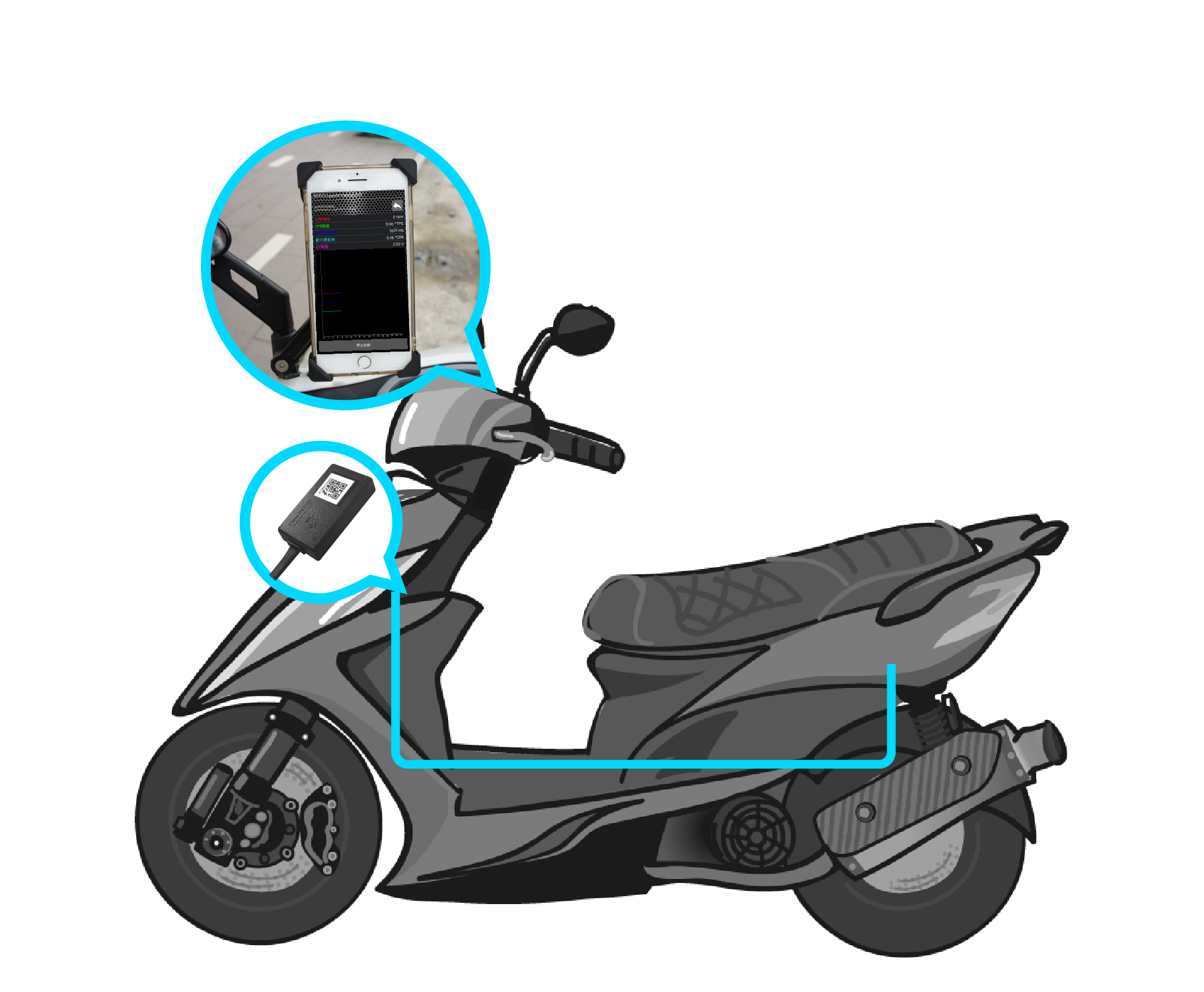

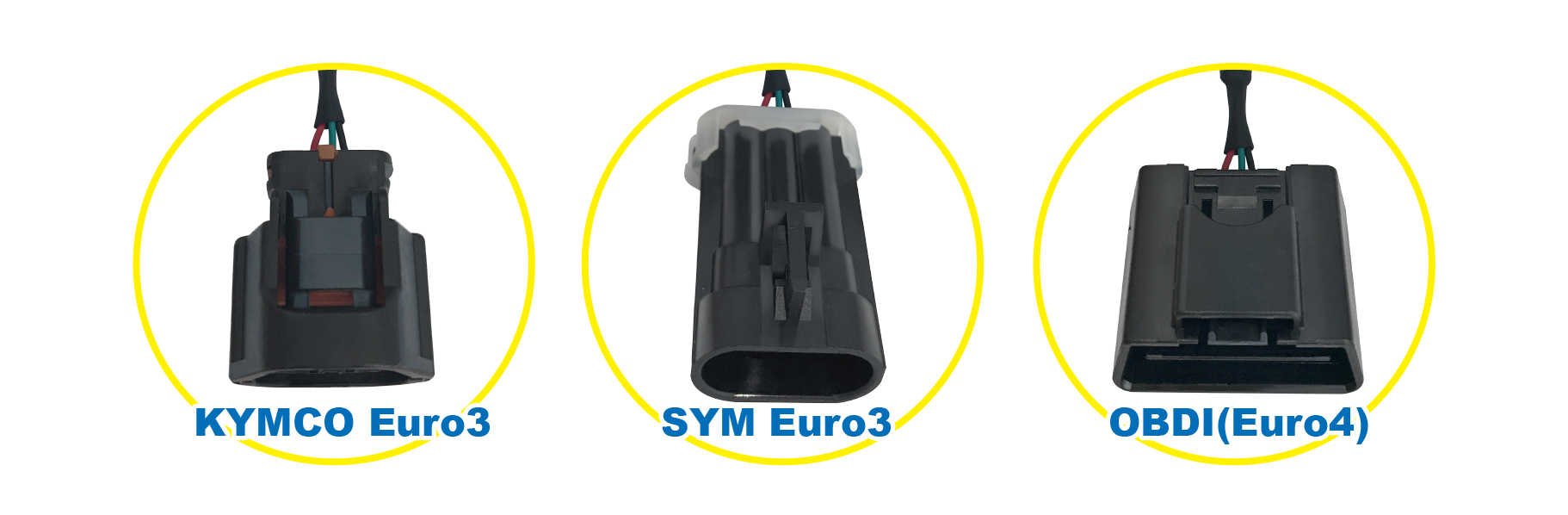

Beside installation of Bluetooth adaptor, please also add Noise Shielding wire to avoid the ignition coil interference while engine is running.
Click on the icon of APP 2.0 to run the APP
Screen when APP is running
If the Bluetooth not activated of your
smartphone, the APP will warning you to activate.br>

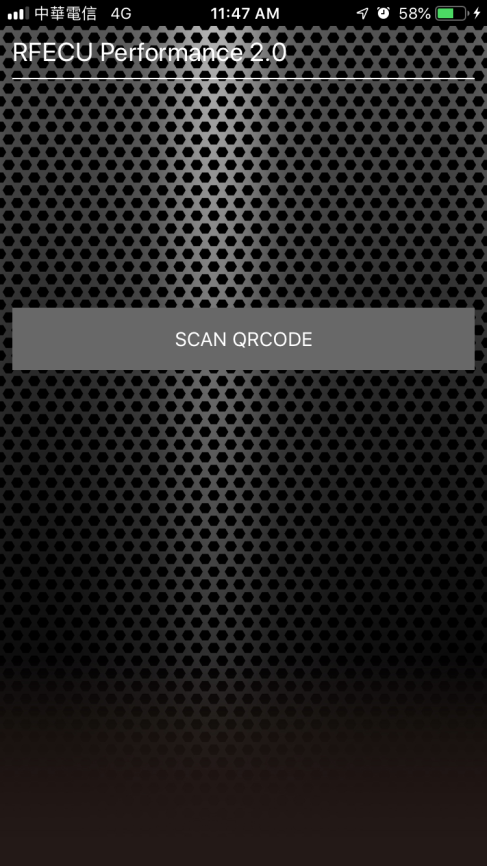

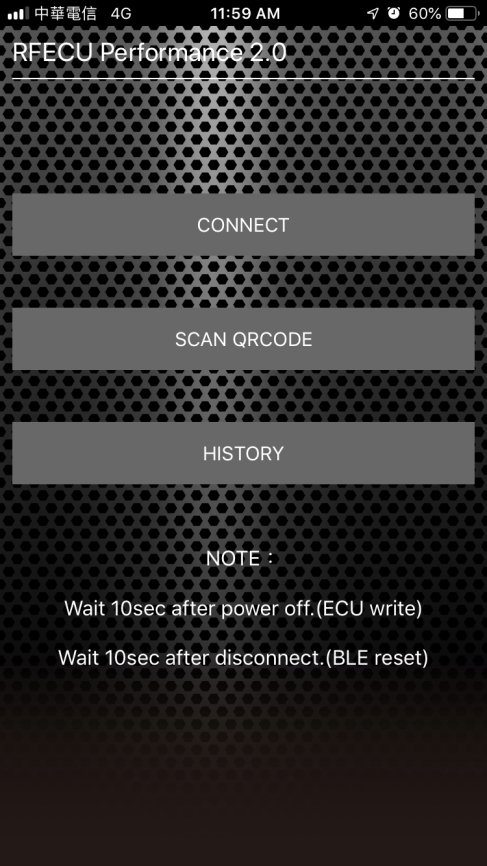

Need to scan the QR code on Bluetooth adaptor for the 1st time using.

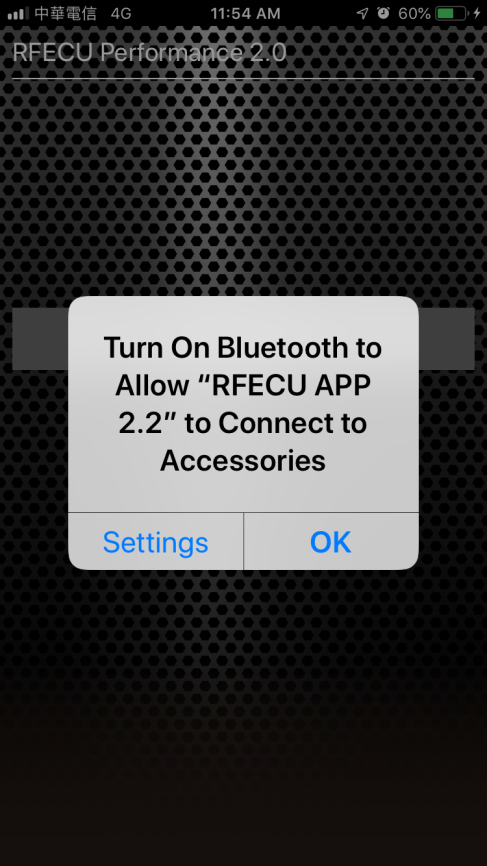

If the Bluetooth is not yet turned on, the APP will remind you to turn on the Bluetooth.

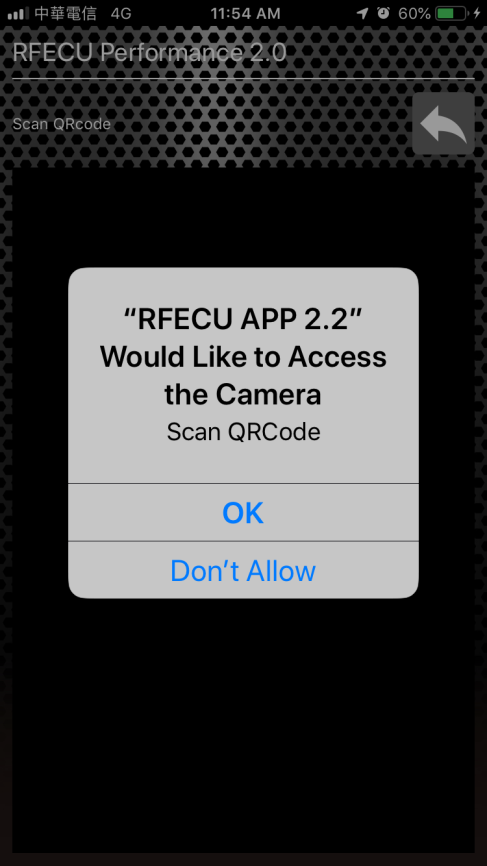

APP access to the phone camera tips
Function items:
After connection successfully, the function selection items will be displayed.

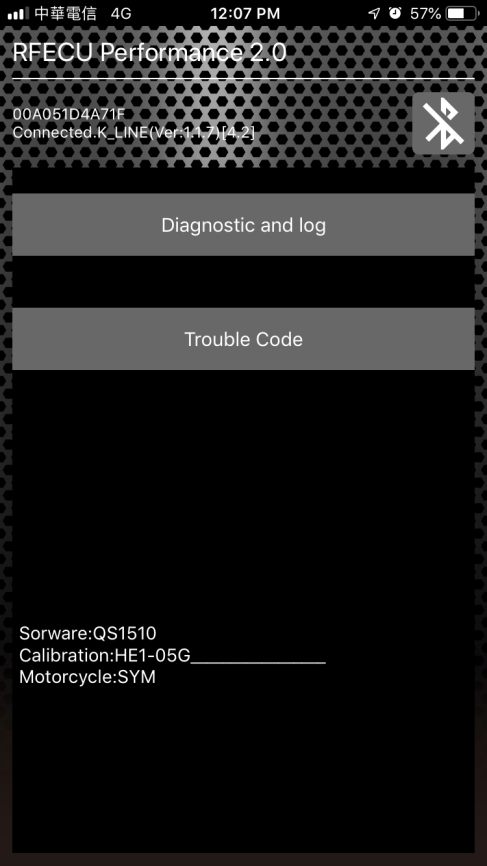

Stock ECU function items:
1.Diagnostic and Log: Real time monitor engine parameters or by curve diagram format, you can also log the data for future analysis.
2.Trouble Code: Able to show the DTC code, content and repairing instruction. Clear trouble code, and also including TPS zero position adaptation and clear ABV learned adaption value functions.
ECU information:
Will showing the ECU information at the bottom
Software: QS1510: QS1510
Calibration: HE1-05G: HE1-05G_________________
Motorcycles: SYM: SYM

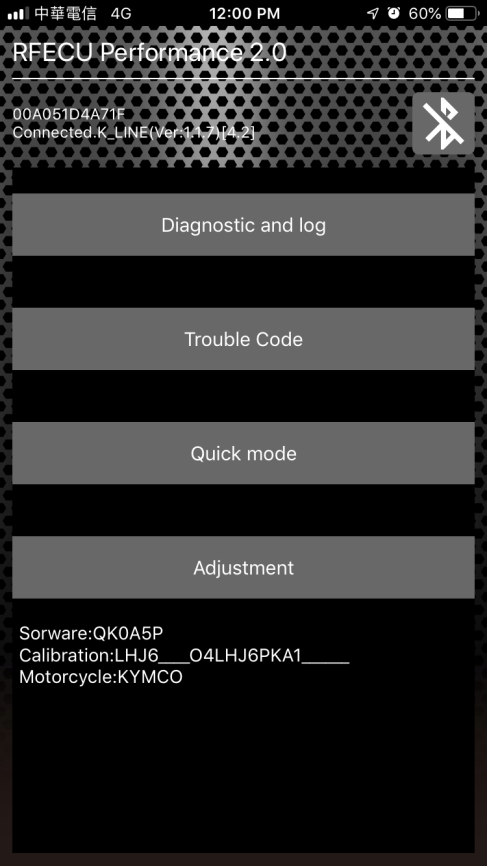

RFECU Performance ECU function items:
Diagnostic and Log: Real time monitor engine parameters or by curve diagram format, you can also log the data for future analysis.
Trouble Code: Able to show the DTC code, content and repairing instruction. Clear trouble code, and also including TPS zero position adaptation and clear ABV learned adaption value functions.
Quick Mode:Able to select modes embedded, or build new mode by yourself.
Adjustment: Able to adjust Fuel, Ignition, O2 Close Loop range and Intake/Exhaust Valve activated range.
ECU information:
Will showing the ECU information at the bottom
Software: QK0A5P
Calibration: LHJ3__04LHJ3PKL1__
Motorcycles:KYMCO(with Performance ECU software will always show KYMCO only!)
Diagnostic and Log

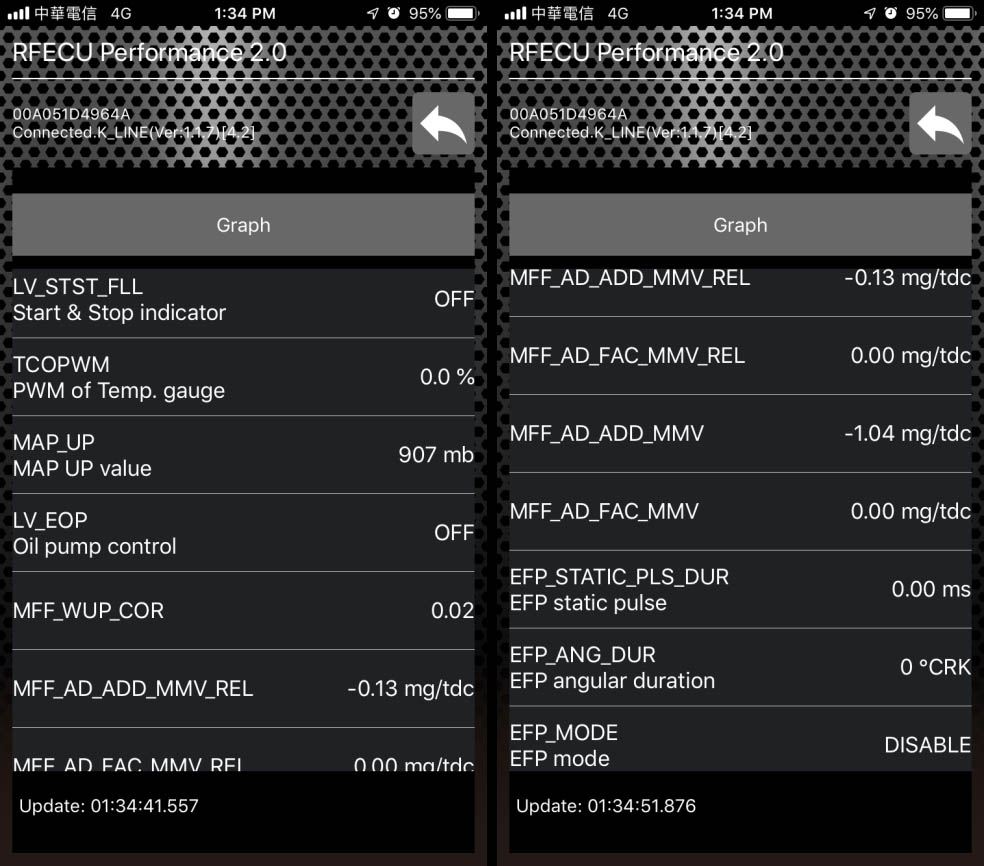

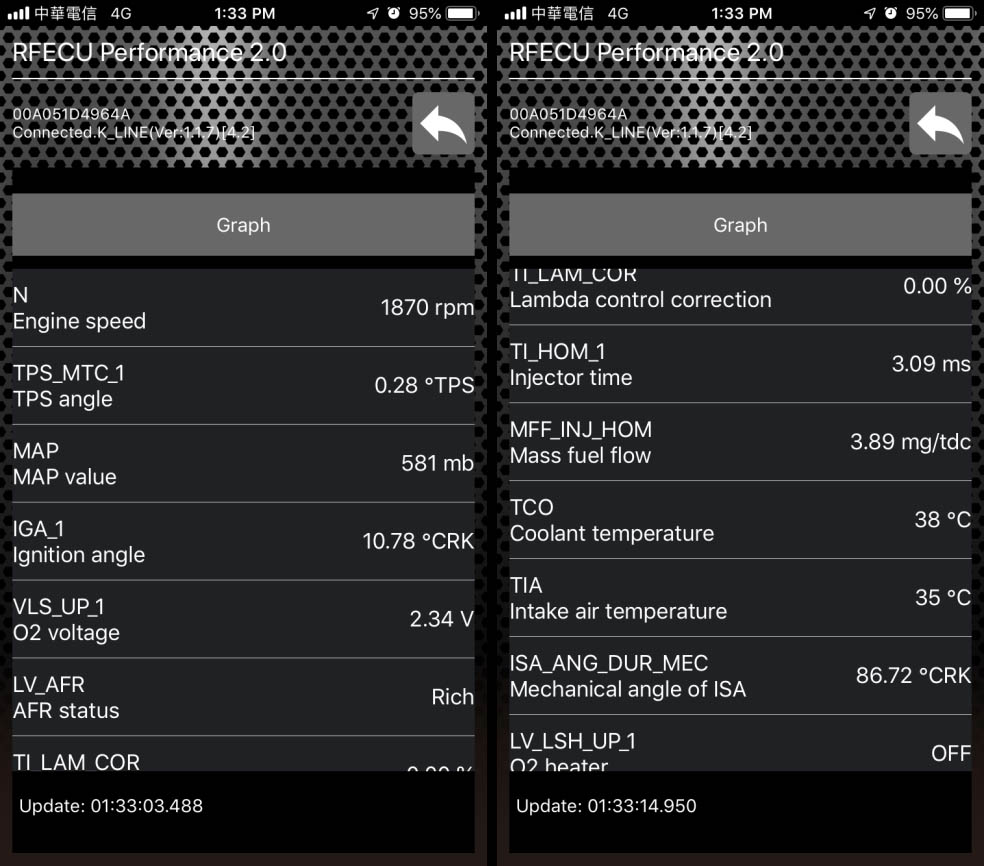

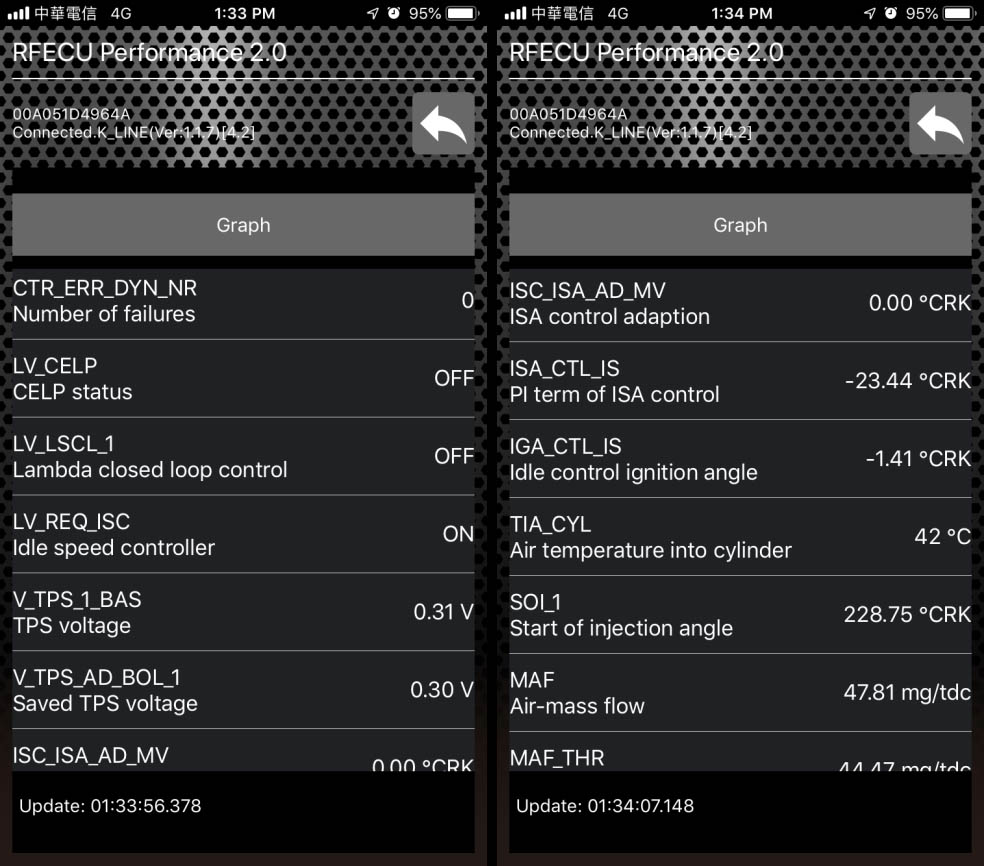

Select the 1st item “Diagnostic and Log”, able to real time monitoring over 60 engine parameters, and you can slide the screen up and down to show other parameters.

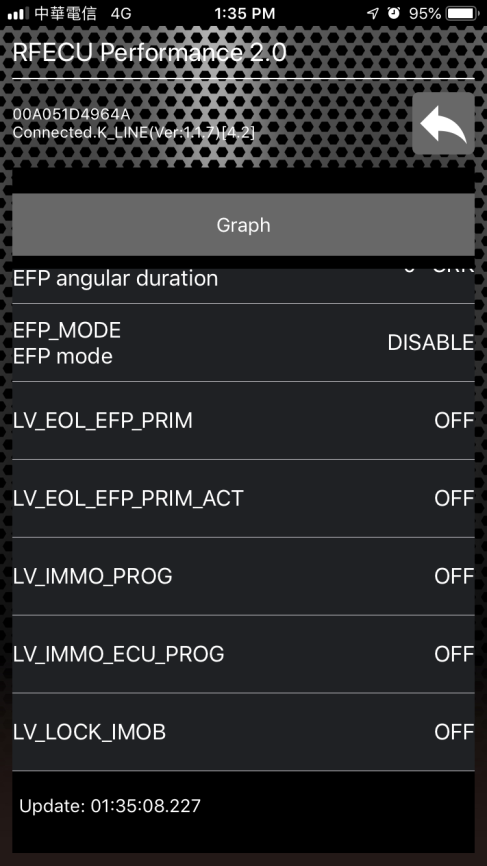

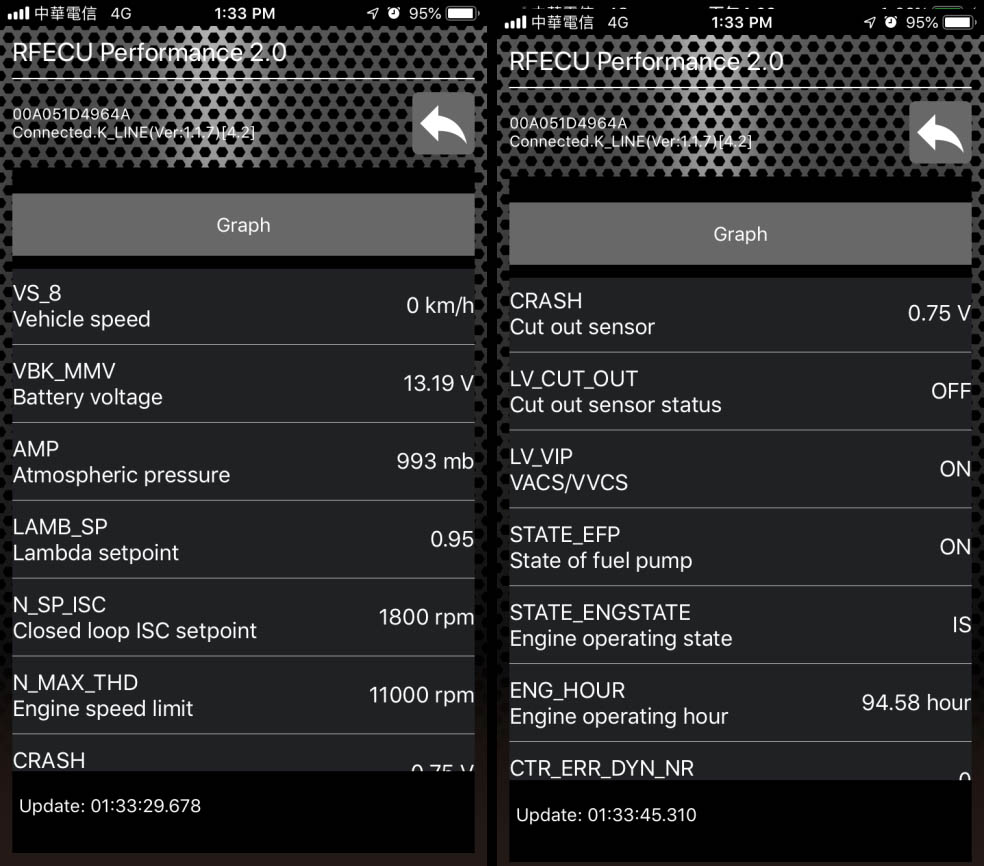

Real time parameters 1/5 page
Real time parameters 2/5 page
Real time parameters 3/5 page
Real time parameters 4/5 page
Real time parameters 5/5 page
Real time parameters 6 page
Graph

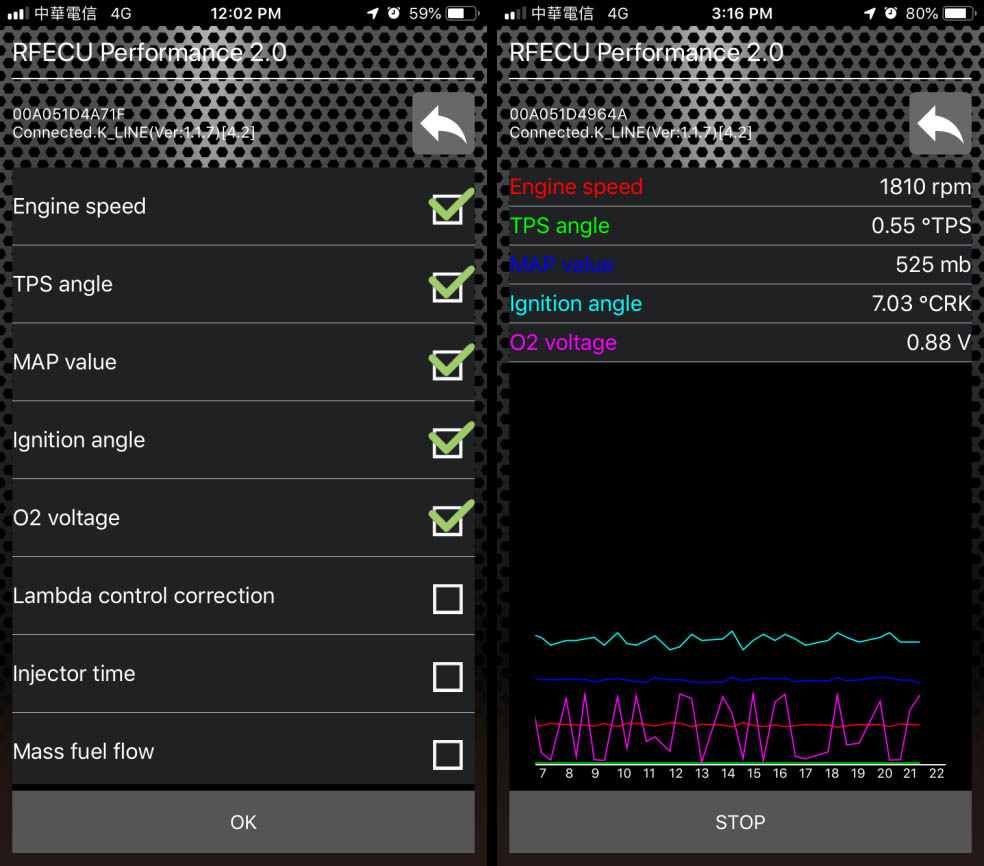

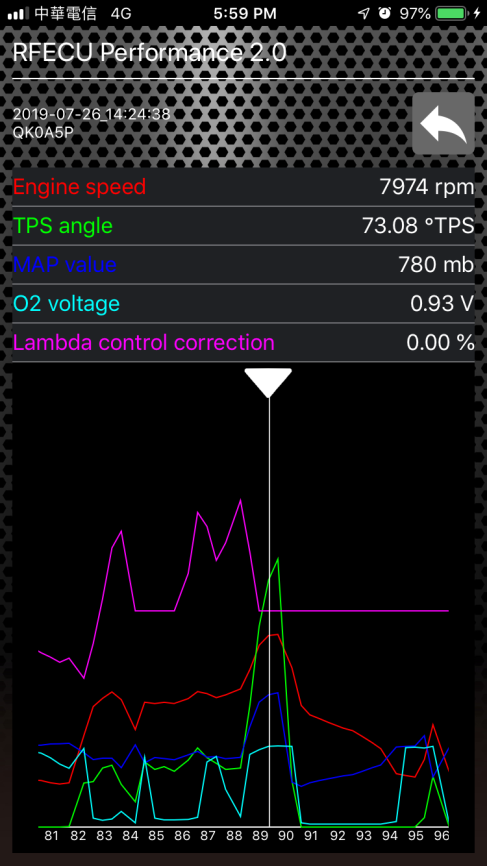

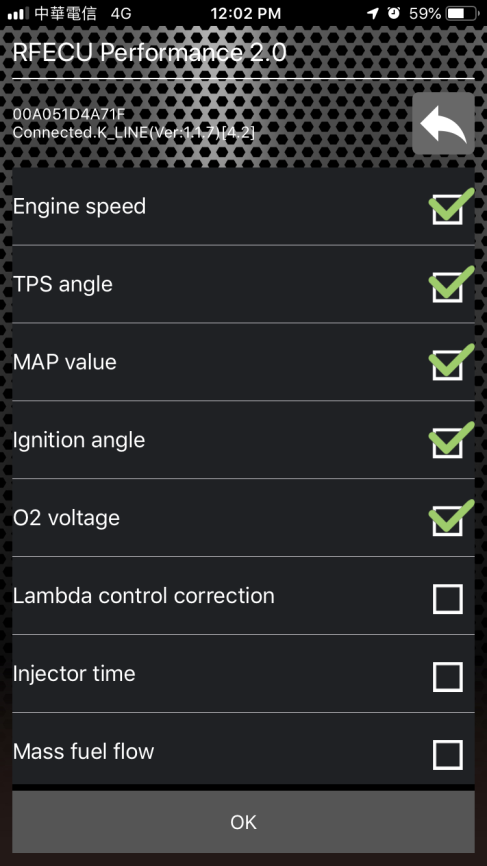

When press “Graph” item, you are able to view the parameter by curve diagram format to see what’s the trend and change. Allow max. select 5 parameters to show in curve diagram, press “OK” and then will showing the graph.
If want to store the log data for future analysis, just press the “STOP” button after finished your logging, the data will store in the memory of your smartphone. The storage is stored all the over 60 parameters in one time, not only limited the 5 parameter you selected at before.
History

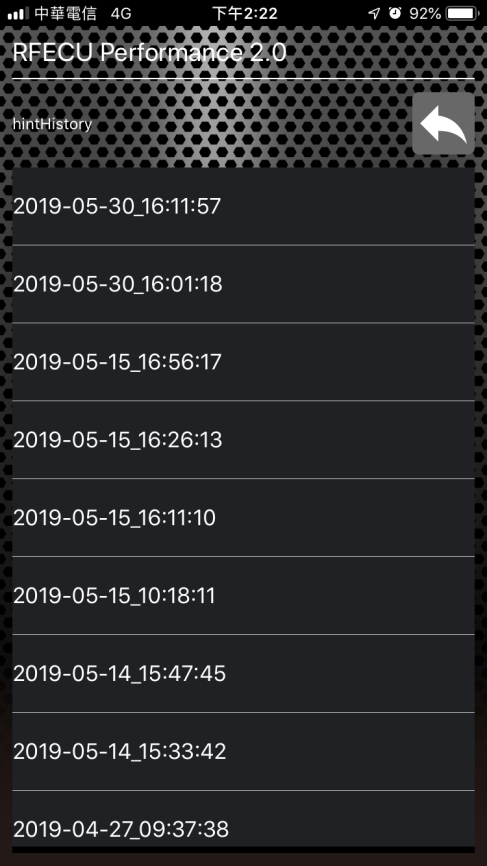

Just disconnect the Bluetooth signal or when starting the APP, your will see the logged history files.
disconnect the Bluetooth signal or when starting the APP, will see the logged history files
Click the “History” button, you will the logged files.(Current setting max. store 50 files in the memory, if exceed, the new one will replace the oldest one. The file size is very small, recording 10 minutes only couple kb.
The files in the History
Select the file you would like to analysis, and select the 5 parameters you would like to see, and then will show the curve diagram. If want to see other parameter, just de-select the parameter could hide, and then select other parameter.
You are able to slide the screen right or left to focus on the area you are interested, and also have the cursor to indicate the values.
Trouble Code
Select the Trouble Code item to enter the Trouble Code Diagnostic function screen.
Trouble code screen

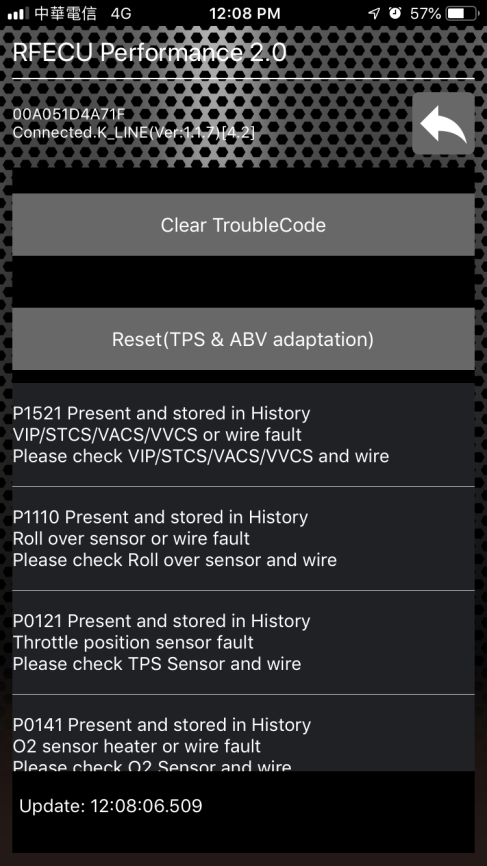

Trouble code content:
1.Showing the DTC code and existing/history status
2.Trouble content
3.Trouble shooting instruction
Reset(TPS & ABV adaptation)
Press the “Reset(TPS & ABV adaptation)” button, force to reset the TPS zero position and reset ABV adaptation learned value.
Quick Mode
Able to switch to other power mode just click one button, and also able to define new profile.

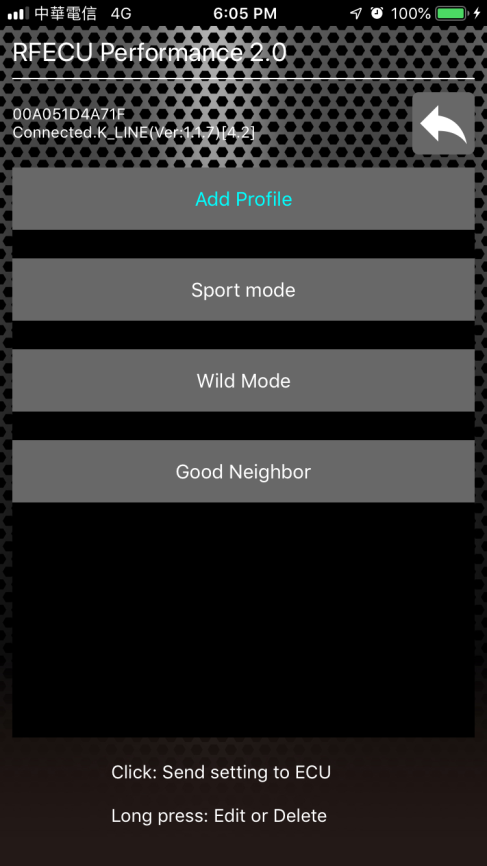

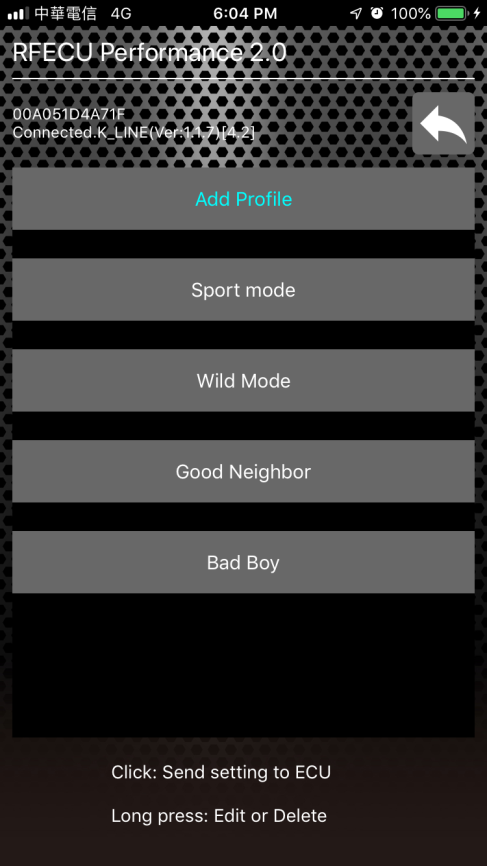

Embedded modes
Able to add new profile
Click is for sending the setting to ECU.
If want to edit the existing profile, long press over 1 sec, and entering the edit mode
Sliding the screen right or left to switch the item you would like to edit.
Sliding the screen right or left to switch the item you would like to edit.

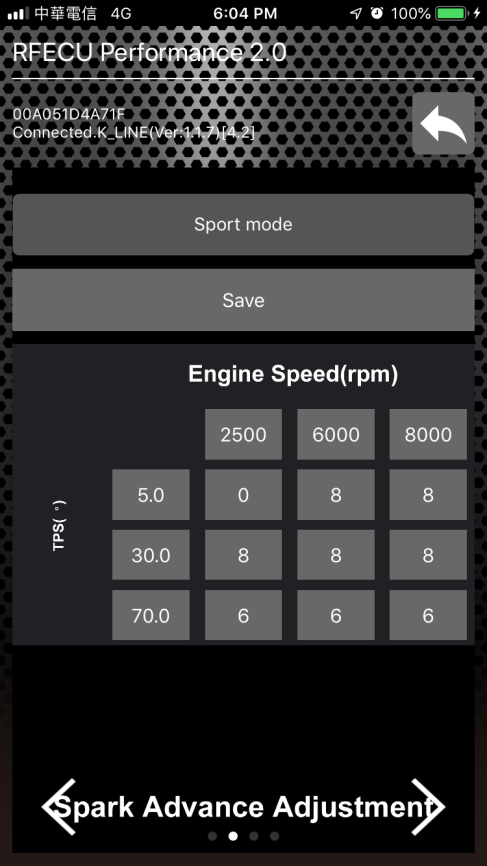

Spark Advance Adjustment

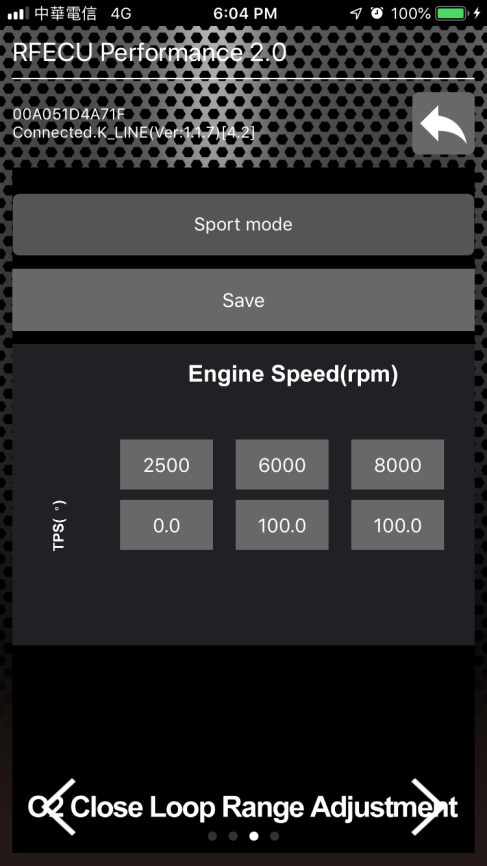

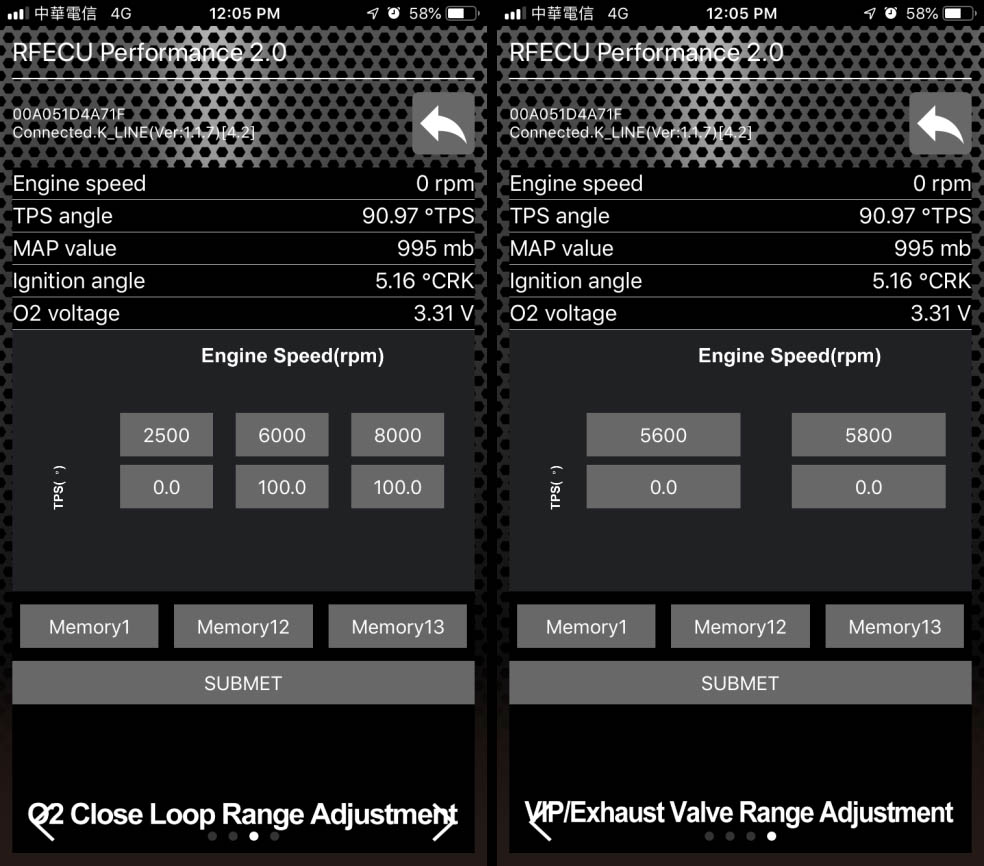

OO2 Close Loop Range

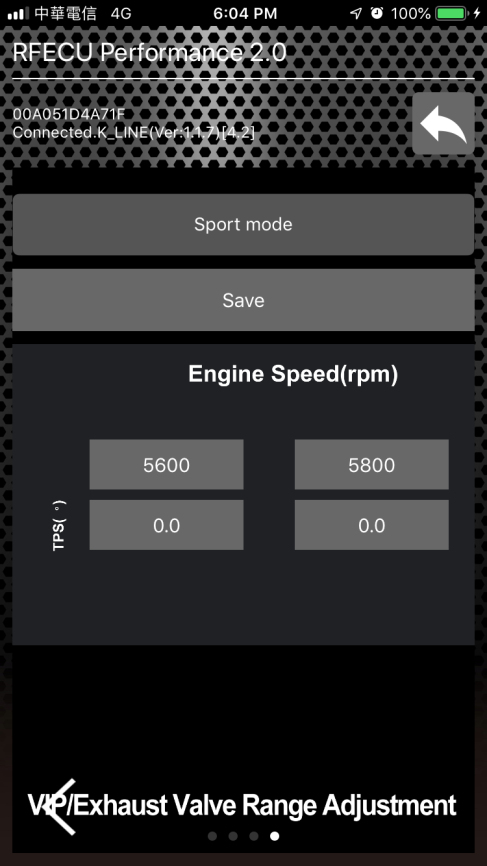

VIP/Exhaust Valve Range Adjustment
After finished the adjustment, click the “Save” button for saving the profile in smartphone.
ECU Adjustment

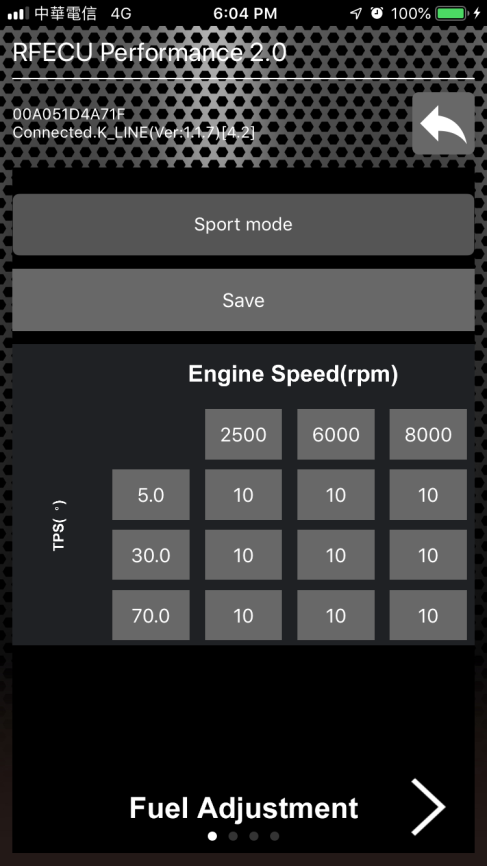

Able to adjust the offset of Fuel and Ignition, O2 Close Loop range and VIP/Exhaust Value activate range adjustment.
Select the “Adjustment” item in the function selection screen, and then entering the ECU adjustment function screen.
For convenience to monitor the engine status, able to select max. 5 parameters you would like to monitor during ECU adjustment.
After selecting the parameters you would like to monitor, press OK and then entering ECU adjustment function screen.
Slide the screen right or left to switch different items for adjustment
